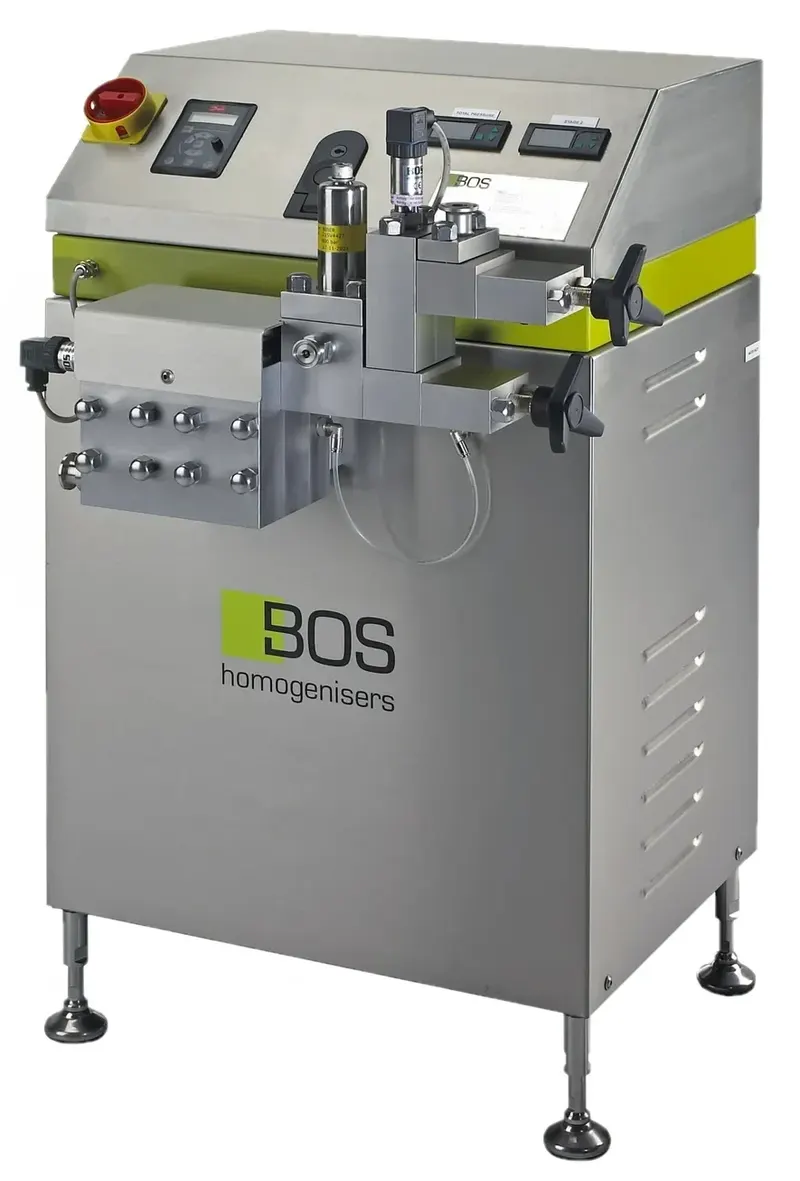

BOS MG2 Homogeniser
40 - 475 L · 150 - 1.200 Bar
Request a quoteDownload infosheet (PDF)
- Liters p/h
- 40 - 475 L
- Bar (pressure)
- 150 - 1.200 Bar
The BOS MG2 is a high pressure homogeniser that supports pressures up to 1,400 bar and capa- cities from 40 up to 1,200 liters/hour. The smart design utilizes a minimum of parts and seals, which makes it fully sanitary and suitable for C.I.P. This machine is especially designed for testing purposes or producing small batches.
Technical Features
Cylinder Block
Single piece precision from forged stainless steel. Standard utilized with spring loaded plunger packings with integrated water cooling. Valves & seats can be out of the following materials according to your specifications/ requirements: Rexalloy, Tungsten carbide.
Homogenising Valve
Find the perfect valve for your product. Choose from a variety of designs and materials, such as rexalloy, tungsten carbide, ceramic or diamond coating, and our one or two stage options.
Drive End
Our unique concept offers a quiet running machine with low eccentric shaft speeds. The electric driven oil pump lubricates all bearings, allowing capacity variation between 30 – 100% under full load.
Rexalloy: Suitable for general-purpose, wear-resistant
Tungsten Carbide: Ideal for highly abrasive environment
Ceramic: Excellent chemical resistance.
Diamond Coating: Provides exceptional hardness and lifespan.
Details
The homogenising pressure can be adjusted manually with a handwheel or through a hydraulic system, which also allows a completely automatic pressure control. The two stage homogenising valve shows a hand-operated assembly with a plug type valve in the first stage and a pilot valve in the second stage. The cylinder block of the MG2 machine is equipped with three plungers.
Product sheet
Pressure in bar | Ball valves (Liters) | Spherical/ Poppet valves (Liters) |
|---|---|---|
150 | 475 L | 1,200 L |
200 | 350 L | 900 L |
275 | 260 L | 650 L |
400 | 180 L | 450 L |
800 | 80 L | – |
1.400 | 40 L | – |
Spherical valves our standard execution, high efficient and low noise. These valves are spring loaded, suitable for processing viscose and moderate abrasive products. Ball valves this option is well known for abrasive products or fluids with hard solid parts.
