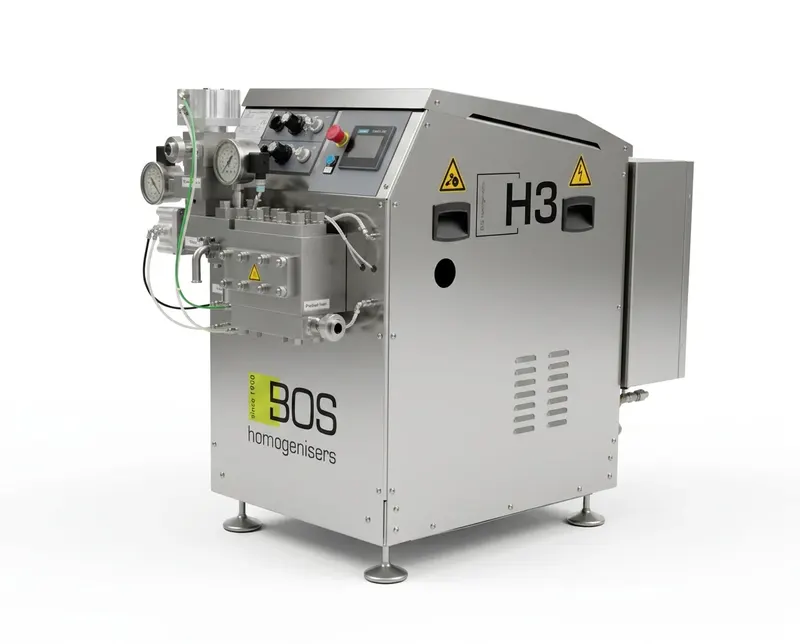

BOS H-Range Homogeniser

2200 L · 400 Bar

Request a quote Download infosheet (PDF)

Liters p/h: 2200 L
Bar (pressure): 400 Bar

The BOS H-Range represents the next generation of high-pressure homogenizers from BOS Homogenisers. Developed to complement and extend the proven MG-series, the H-Range delivers reliable homogenisation performance at a competitive investment level — making it an ideal choice for dairy, beverage, and food processing operations seeking maximum efficiency without compromise.

BOS Homogenisers technician operating CNC machine to manufacture precision spare parts for homogenisers

Technical Features

Cylinder Block
Single piece precision from forged stainless steel. Standard utilized with spring loaded plunger packings with integrated water cooling. Valves & seats can be out of the following materials according to your specifications/ requirements: Rexalloy, Tungsten carbide.
Homogenising Valve
Find the perfect valve for your product. Choose from a variety of designs and materials, such as rexalloy, tungsten carbide, ceramic or diamond coating, and our one or two stage options.
Drive End
Our unique concept offers a quiet running machine with low eccentric shaft speeds. The electric driven oil pump lubricates all bearings, allowing capacity variation between 30 – 100% under full load.

Rexalloy: Suitable for general-purpose, wear-resistant
Tungsten Carbide: Ideal for highly abrasive environment
Ceramic: Excellent chemical resistance.
Diamond Coating: Provides exceptional hardness and lifespan.

BOS Homogenisers engineer performing final inspection on homogeniser assembly

Details

Maximum Efficiency. Competitive Investment.

The H-Range has been engineered from the ground up to deliver reliable high-pressure homogenisation across a wide range of production environments. Designed for dairy, beverage, and food applications, the H-series operates at pressures up to 400 bar, offering the flexibility required for demanding processes.

Engineering Highlights

Built on 75 years of homogenisation expertise, the H-series features a durable and compact stainless-steel frame engineered for low vibration and robust, stable operation. Key engineering features include:

Poppet pumping valves: Optimized product flow and high volumetric efficiency for consistent process performance.
Air-cooled lubrication oil: Reduces water consumption and simplifies installation — no cooling water connection required.
Compact stainless-steel frame: Low vibration design ensures stable operation and a small footprint on the production floor.
Interchangeable homogenizing valves: Compatible with the full range of BOS valve options — Stellite, Tungsten Carbide, Ceramic, and Diamond-coated — to match specific product requirements.
Flexible motor options: IE3/IE4 electric motors available, with optional frequency inverter for variable speed control, supporting energy-efficient and adaptable processing.

Key Applications

The BOS H-Range is designed for a broad spectrum of production environments:

Dairy processing: Milk, cream, yoghurt, and cheese preparation
Beverage production: Juices, plant-based drinks, and flavoured beverages
Food manufacturing: Sauces, dressings, infant nutrition, and functional foods

H-Range vs. MG-Series

The H-Range complements the established BOS MG-series. While the MG-series covers capacities from 40 l/h (MG2) up to 140,000 l/h (MG140) with pressures up to 1,400 bar, the H-Range focuses on the 400-bar segment with an optimized cost-performance ratio. For applications requiring higher pressures or extreme capacities, the MG-series remains the benchmark.

Product sheet

Feature	H-Range (H3/H4)	MG-Series
Pressure	Up to 400 bar	Up to 1,400 bar
Capacity range	Up to 5,000 l/h	40 – 140,000 l/h
Target	Cost-efficient production	Full range, incl. high-pressure
Valve compatibility	All BOS valve types	All BOS valve types

Spherical valves our standard execution, high efficient and low noise. These valves are spring loaded, suitable for processing viscose and moderate abrasive products. Ball valves this option is well known for abrasive products or fluids with hard solid parts.
